2021 Excellence in Environmental Engineering and Science™ Awards Competition Winner

E3S Grand Prize

Grand Prize - Planning

San Gabriel River Watershed Project to Reduce River Discharge in Support of Increased Recycled Water Reuse

Entrant: Los Angeles County Sanitation Districts
Engineer in Charge: Robert C. Ferrante, P.E., BCEE
Location: Whittier, California
Media Contact: Stephanie Olague


Entrant Profile

LACSD

figure figure

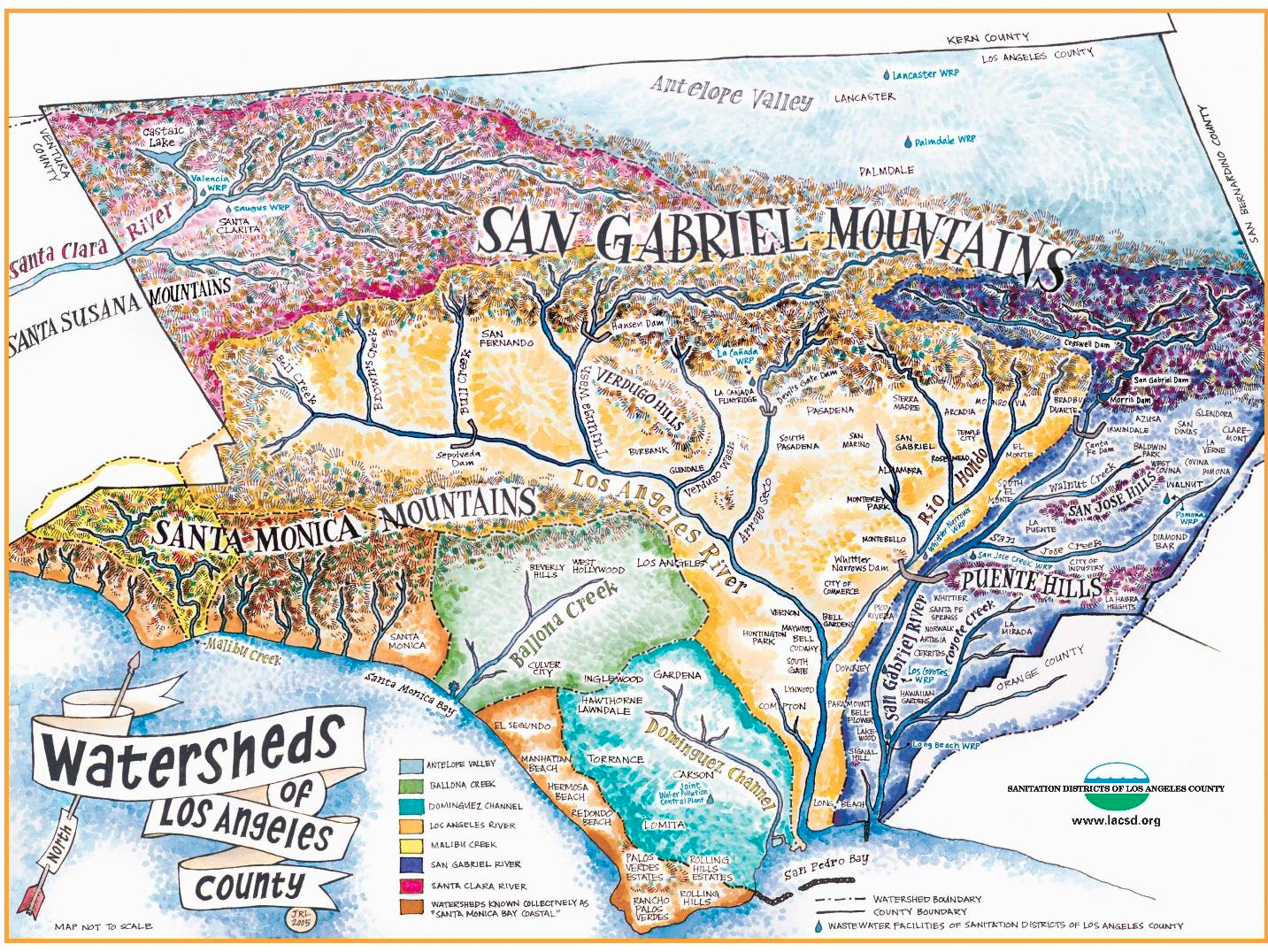

Figure 1: Highlights the 8 major watersheds in Los Angeles County including the San Gabriel River Watershed.

figure

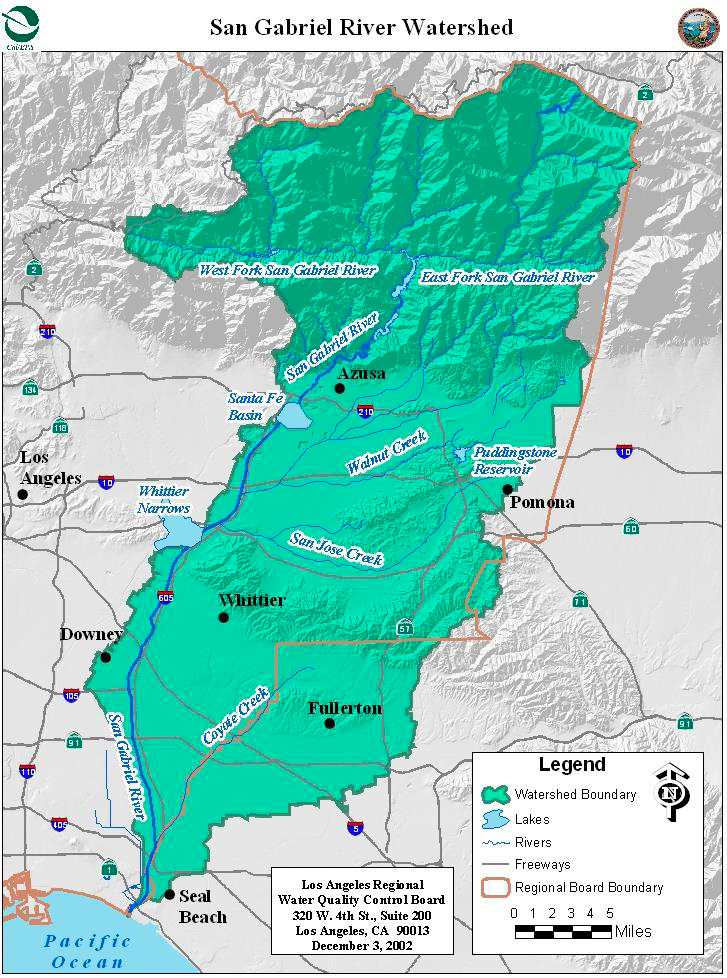

Figure 2: The 640-square-mile San Gabriel River Watershed is located in the eastern portion of Los Angeles County.

figure

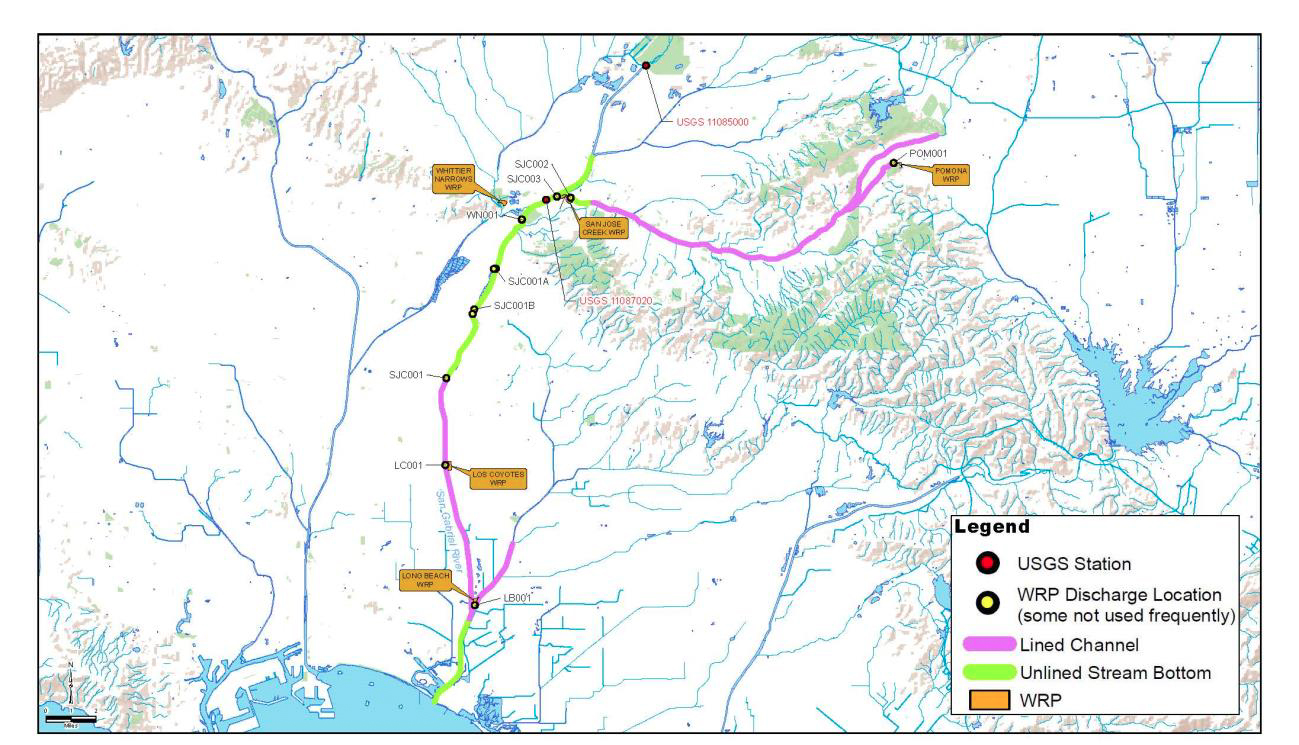

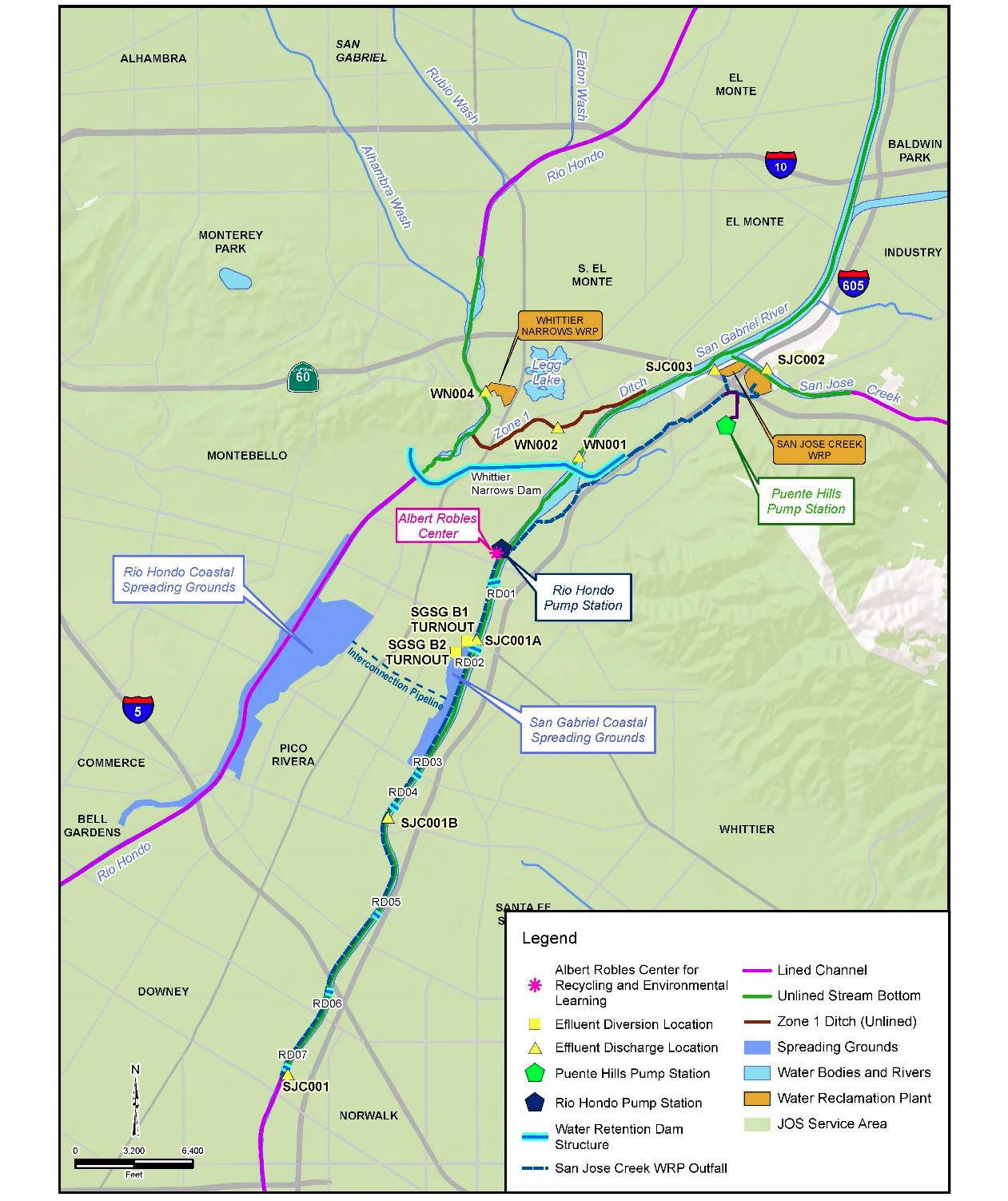

Figure 3: Sanitation Districts Water Reclamation Plant discharge locations in the San Gabriel River Watershed.

figure

Figure 4: Since 1962 the Sanitation Districts has augmented arid Southern California’s water supply through groundwater recharge operations in the San Gabriel River Watershed.

figure

Figures 5: Least Bell’s Vireo (LBV; Vireo bellii pusillus), LBV habitat, LBV nest.

figure

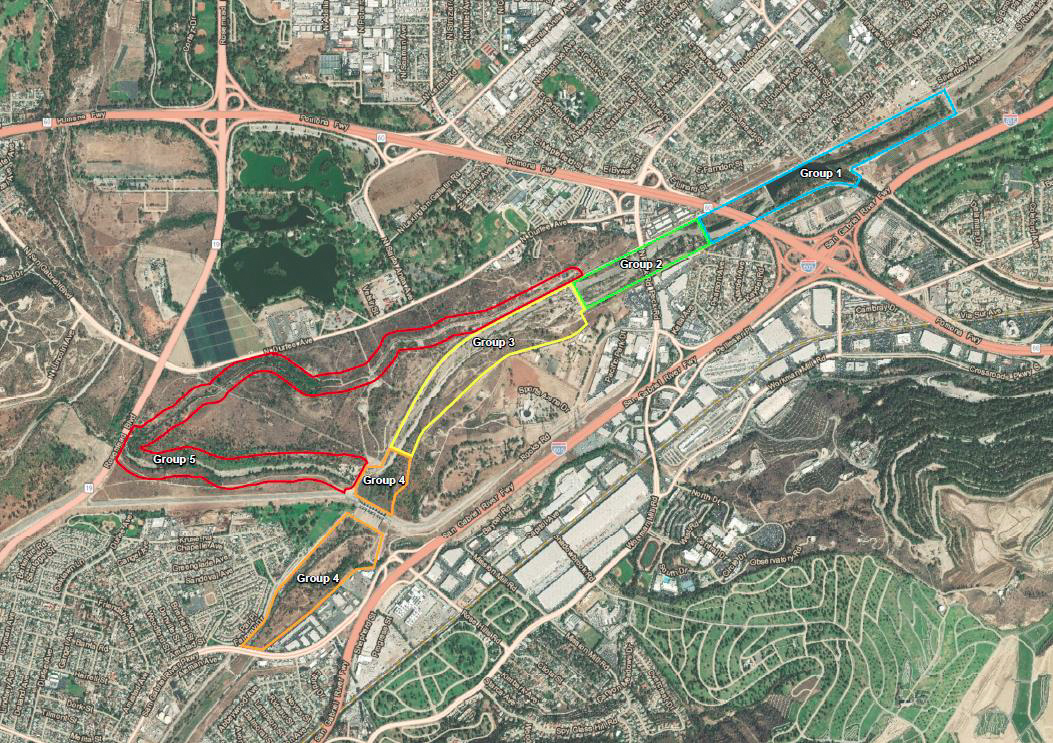

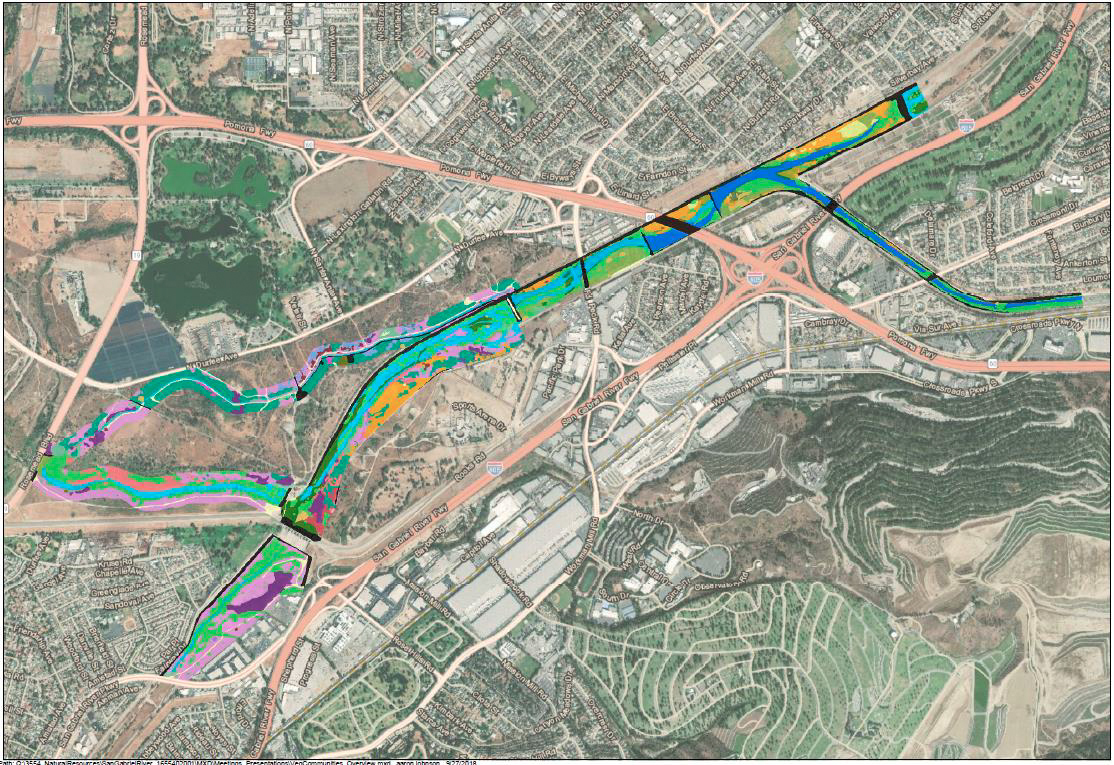

Figure 6: Habitat areas grouped by similar hydraulic conditions are closely monitored as part of the innovative San Gabriel River Adaptive Management Plan.

figure

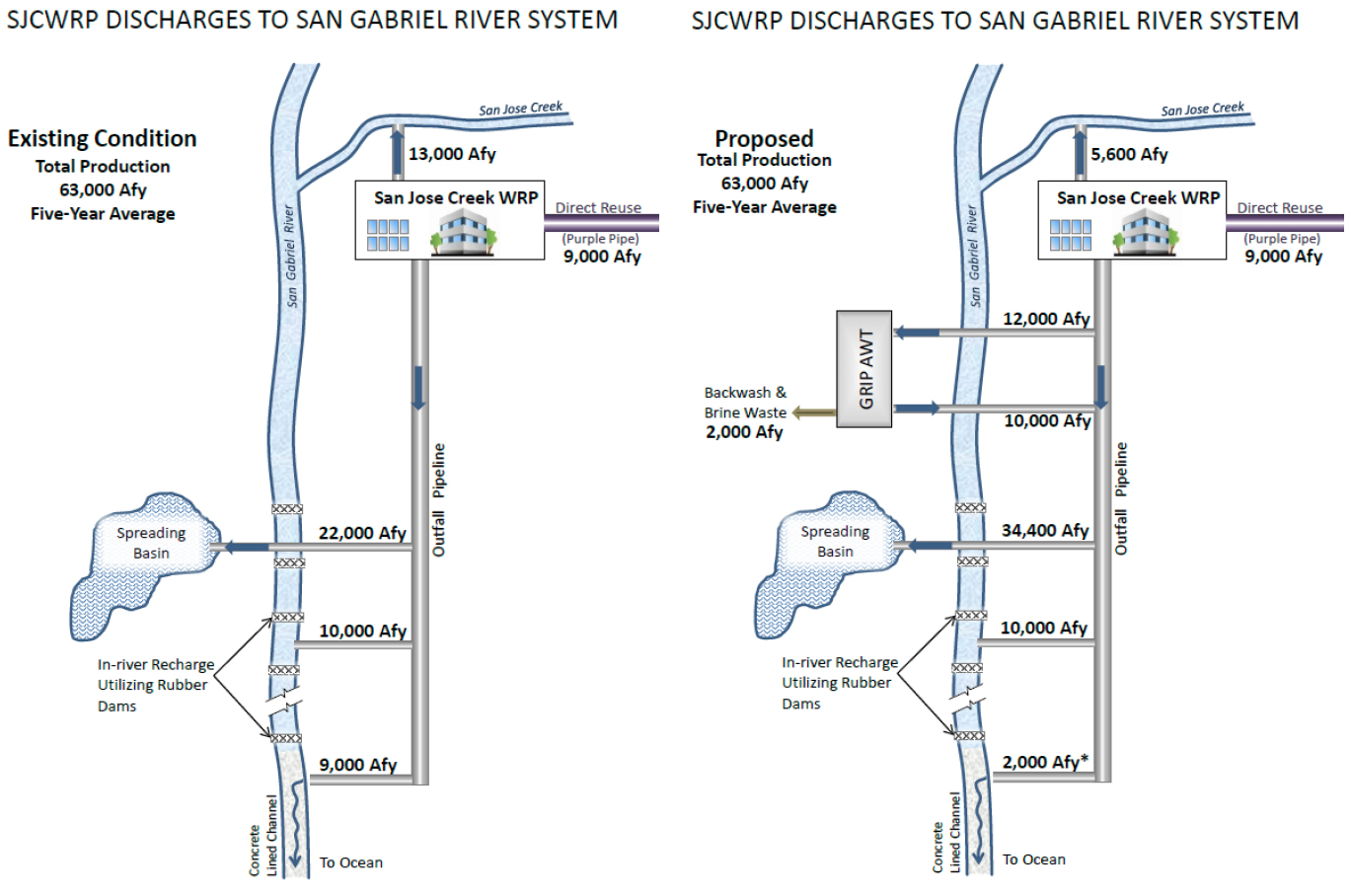

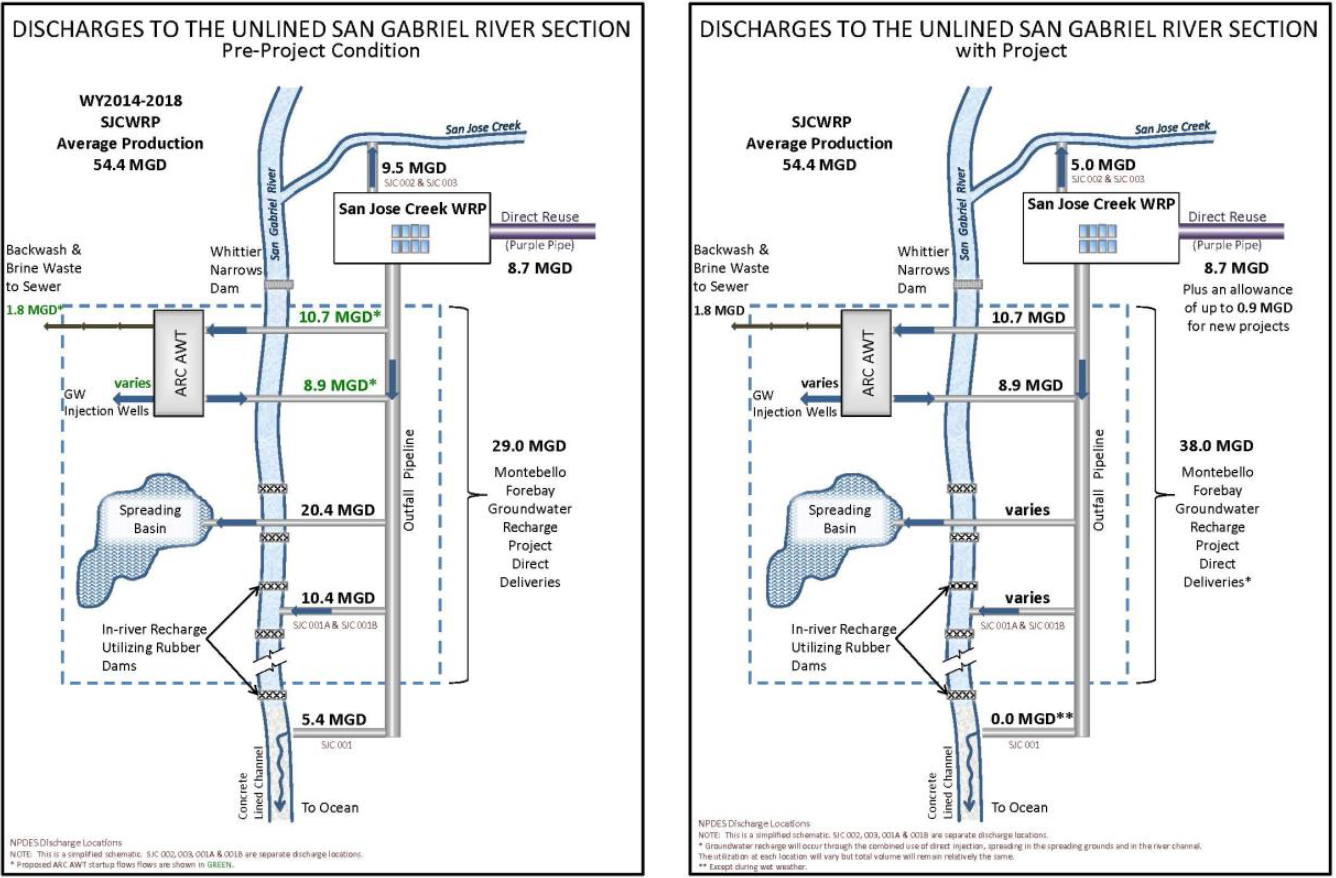

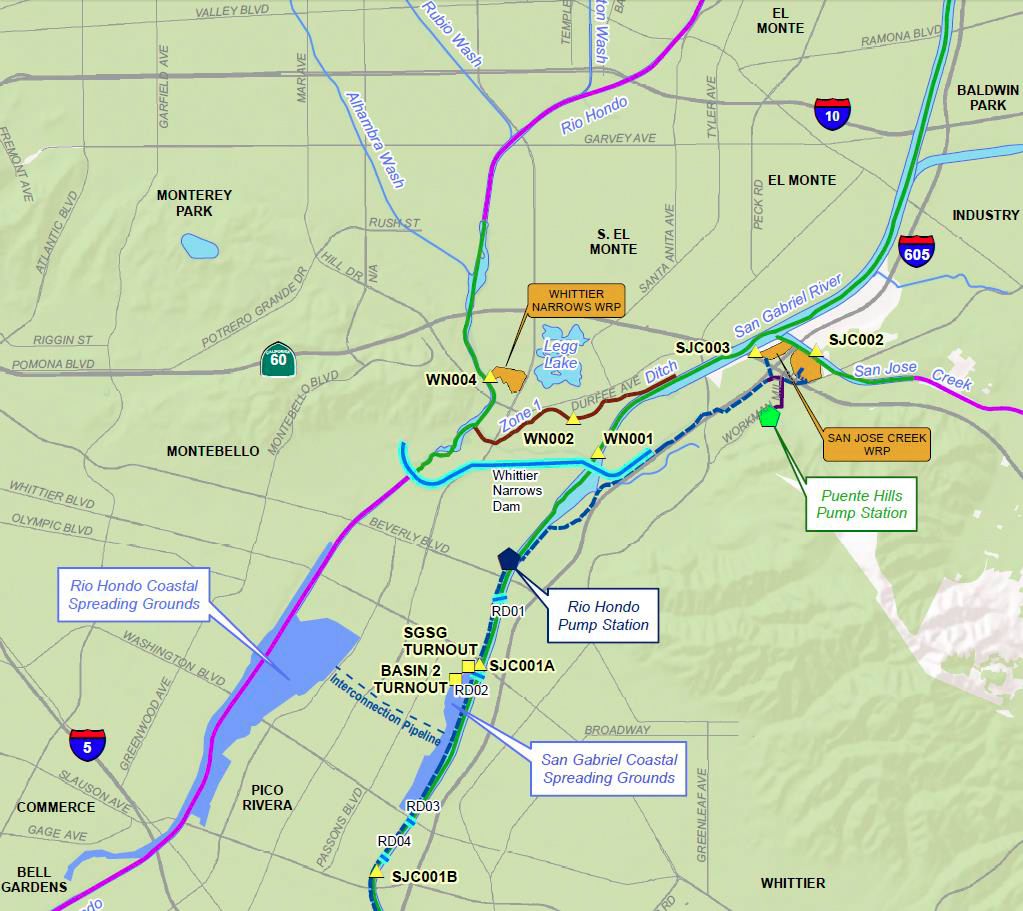

Figure 7: The Adaptive Management Plan for the San Gabriel River Watershed carefully assessed existing pre-project conditions and developed an innovative approach that protects natural resources while at the same time increasing recycled water deliveries to the local community. This figure shows adaptive diversions for the San Jose Creek WRP.

figure

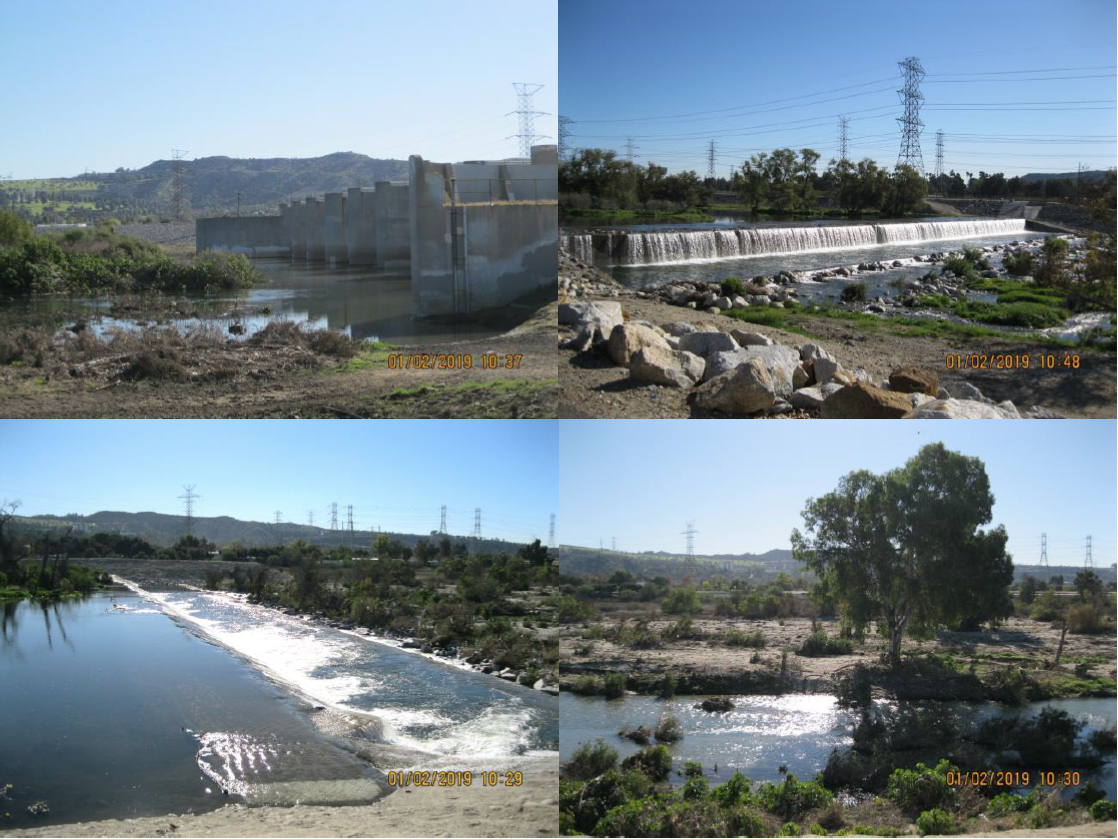

Figure 8: The San Gabriel River Watershed Project finds the right balance by recycling more water and discharging to the San Gabriel River at strategic locations, times and amounts to support habitat. Under the Adaptive Management Plan, the timing and volumes of river discharge will be set to sustain important habitat.

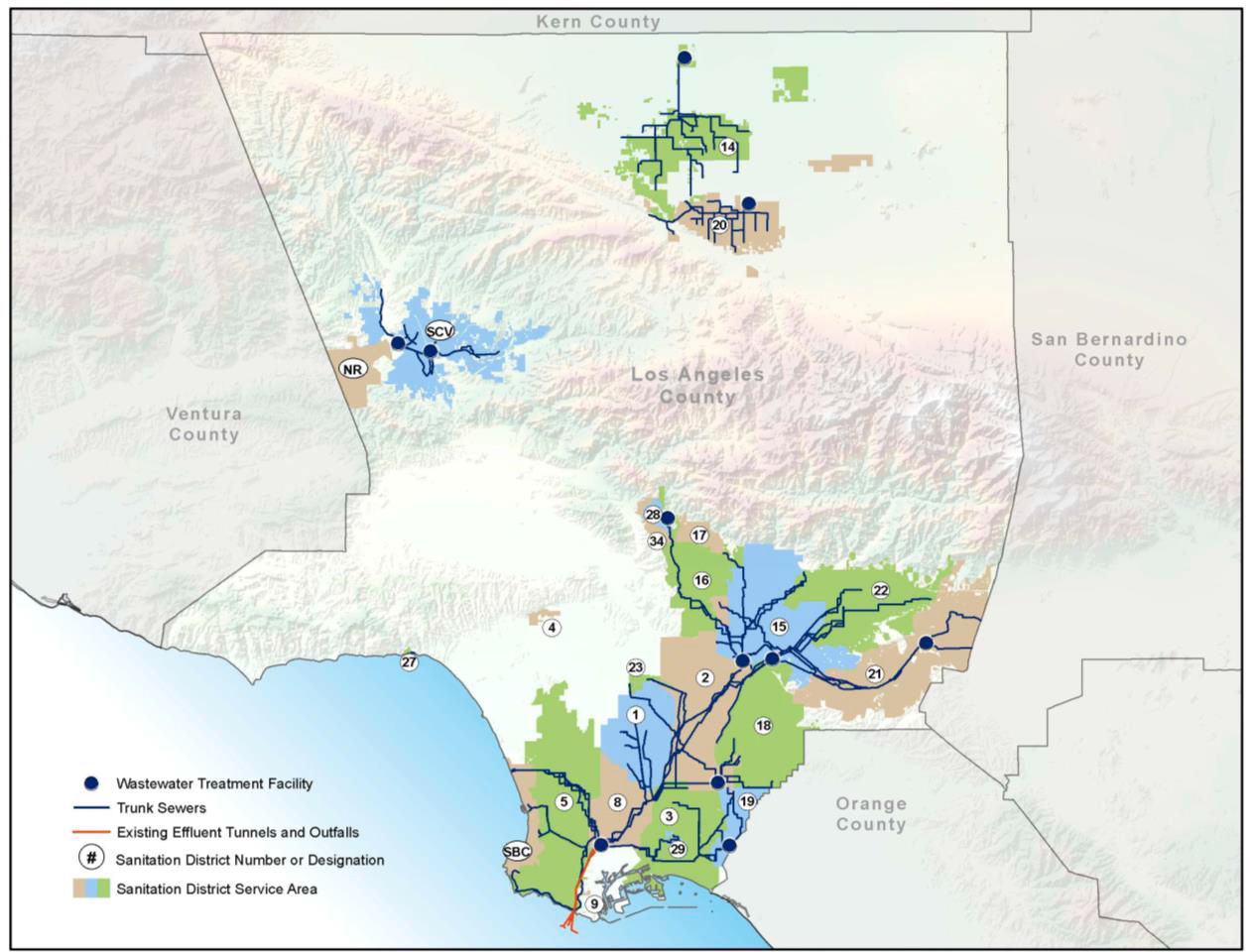

The Los Angeles County Sanitation Districts (Sanitation Districts) are a public agency that consists of 24 independent special districts that serve approximately 5.6 million people in Los Angeles County (County). The Sanitation Districts’ service area covers approximately 850 square miles and encompasses 78 cities and unincorporated territory within the County. The Sanitation Districts construct, operate and maintain facilities that manage wastewater and solid waste and, in so doing, convert waste into resources, such as recycled water, green energy, and recycled materials.

The agency operates and maintains a regional wastewater management system that transports and treats about half the wastewater in the County, or about 400 million gallons per day. This system includes approximately 1,400 miles of trunk sewers, 48 pumping plants and 11 wastewater treatment plants. The recycled water produced by our treatment plants is beneficially reused at more than 950 sites, including groundwater recharge basins that augment our local water supply.

The Sanitation Districts are always striving to recycle even more water to help our communities. However, when more water is recycled, less is discharged to rivers where that recycled water may support habitat. In collaboration with river stakeholders and agencies charged with protecting habitat, we completed a 5-year study on the effects of reduced river discharge to find the right balance between community and environmental needs. This study has resulted in an Adaptive Management Plan that makes more recycled water available for reuse.

Project Description

A Plan to Balance Societal and Environmental Water Needs in the San Gabriel River Watershed

As the number of recycled water projects in Southern California increases, treatment plants may send more recycled water to distribution systems and discharge less recycled water to channels and streams. The potential reduction to local stream flow requires careful planning to balance societal and environmental needs. The Sanitation Districts have worked over the past five years with the California State Water Resources Control Board (State Board), the California Department of Fish and Wildlife (CDFW), and the U.S. Fish and Wildlife Service (USFWS) to study the effects of reduced recycled water discharges to the San Gabriel River watershed (see Figures 1 and 2). A Plan to Balance Societal and Environmental Water Needs in the San Gabriel River Watershed (The San Gabriel River Watershed Project) is the result of this collaborative effort.

CDFW and USFWS are concerned that reduced recycled water discharges to Southern California’s streams and rivers may adversely affect the aquatic and riparian ecosystems that have grown to rely on recycled water discharges. These stream corridors provide valuable wildlife habitat in our urbanized region.

As part of the project, the Sanitation Districts worked closely with CDFW and USFWS to evaluate the San Gabriel River and develop an Adaptive Management Plan (AMP) that protects the habitat along the river while seeking to provide more recycled water for the region. The resulting AMP supports incrementally reducing surface discharges of recycled water from five Sanitation Districts’ water reclamation plants (WRPs) within the watershed. These WRPs—San Jose Creek WRP, Pomona WRP, Whittier Narrows WRP, Los Coyotes WRP and Long Beach WRP—have historically discharged into the San Gabriel River or its tributaries: San Jose Creek or Coyote Creek (see Figure 3). The water not discharged will instead supply recycled water programs implemented by partner agencies (see Figure 4).

Development of the Adaptive Management Plan

Species Surveys

Before recycled water can be beneficially reused, the State Board must find that the proposed change will not injure other users of water, harm instream uses, and is in the public interest. In California, protection of aquatic ecosystems is verified by surveying the most vulnerable or sensitive species in the watershed. To verify that sensitive species in the watershed, including the Least Bell’s Vireo (the most sensitive species in this watershed), are protected four focused special-status species surveys were performed within the San Gabriel River watershed (see Figure 5). The four surveys included fish, Tricolored Blackbird, bat, and the Western Pond Turtle. Through ongoing Habitat Management Committee (which includes members from resource agencies, non-governmental organizations (NGOs) and other experts) oversight, and the constructive engagement of the CDFW, concerns about impacts to rare species have been satisfactorily resolved.

Groundwater Studies

The annual water demand for the entire vegetated area is 1,945 AF or 64 million gallons per year. Based on this analysis, the Sanitation Districts would need to supply a sufficient amount of water that could be either (1) consumed by vegetation directly from surface flow, or (2) stored in the soil to provide for the future needs of the vegetation. Groundwater and hydrology modeling were conducted to verify future needs were met. The groundwater study determined that the strategic recycled water diversions would not reduce groundwater storage.

Hydrology Studies

The hydrology studies examined constant versus intermittent discharges of recycled water and rather than setting flows, adjusts the amount of recycled water discharge based on water conservation and flood control levels (see Figure 6 for study areas). The Sanitation Districts proposed a modified water discharge schedule to more efficiently provide water both in volume and time. The San Gabriel River Watershed Project is designed to minimize the lengths of dry periods over the course of the year, while targeting an average discharge rate of 5 MGD.

The Adaptive Management Plan developed as part of the San Gabriel River Watershed Project describes the habitat monitoring and adaptive triggers and actions that will be used to identify and mitigate impacts from reduced surface discharge of recycled water. The plan established the Habitat Management Committee to review the habitat conditions and identify when and if adaptive management actions are needed. The committee reviews collected data annually to verify protective responses. The overall goal of the plan is to maintain habitat at its existing level, or better, while making more recycled water available to the community.

Based on the findings of the San Gabriel River Watershed Project, the State Board approved reduced recycled water discharges in 2020 under California Water Code §1211, which requires that any diversion of recycled water from waterbodies consider the effects to beneficial uses, including effects to ecosystems. That approval required collaboration not only with resource agencies but also with the environmental community, who initially had concerns about habitat sustainability.

The advantages of the plan were so clearly demonstrated that representatives of the environmental community, LA Waterkeeper and Heal the Bay, drafted a letter to the State Board “supporting the approval of the diversions.” The collaborative effort between the Sanitation Districts, wildlife agencies, and NGOs resulted in a watershed management approach that protects natural resources while at the same time augmenting the region’s water supply (see Figure 7).

The San Gabriel River Watershed Project demonstrates how agencies, environmental groups and regulators can work together as California and the nation seek to increase local water sustainability, while simultaneously maintaining watershed habitat (see Figure 8). As a result of the project, the timing and volumes of recycled water discharges will be managed to sustain important habitat with annual monitoring performed to ensure there are no negative impacts. This project, which has freed up 35 million gallons per day of recycled water for community use, can serve as a science-based blueprint for developing other sustainable environmental management plans.


Click images to enlarge in separate window.

E3S Photos E3S Photos

A watershed is the land area where water collects and drains into a river, ocean or other body of water. There are 8 major watersheds in Los Angeles County.

The 640 square mile San Gabriel River Watershed is located in the eastern portion of Los Angeles County. It is bound by the San Gabriel River Mountains to the north, most of the San Bernardino/Orange County to the east, the division of the Los Angeles River from the San Gabriel River to the west, and the Pacific Ocean to the south.

E3S Photos E3S Photos

Five Sanitation Districts Water Reclamation Plants (WRPs) discharge to the San Gabriel River Watershed including the San Jose Creek WRP, the Pomona WRP, the Whittier Narrows WRP, the Los Coyotes WRP, and the Long Beach WRP.

Least Bell’s Vireo (LBV; Vireo bellii pusillus), LBV habitat, LBV nest.

E3S Photos E3S Photos

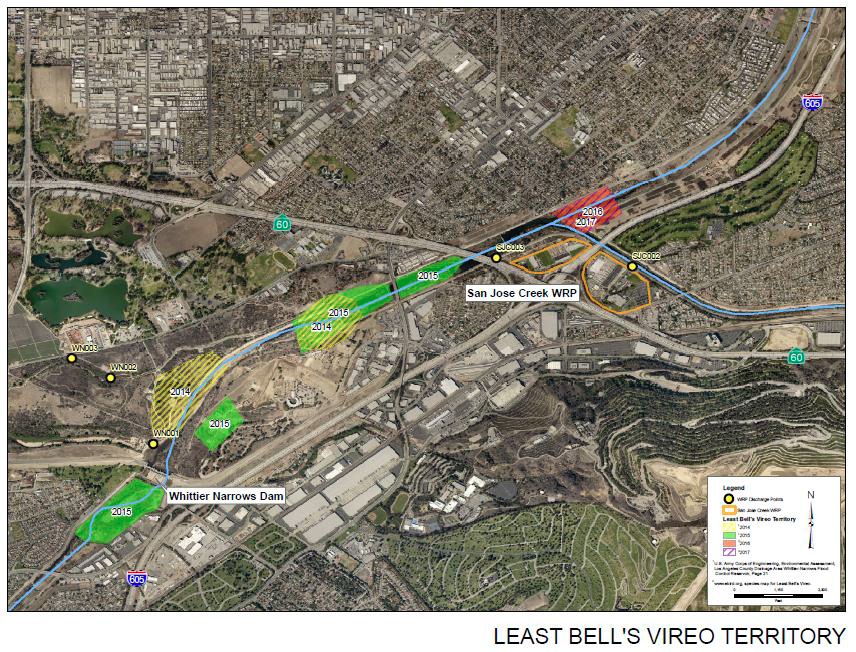

Least Bell’s Vireo (LBV; Vireo bellii pusillus), territory is closely monitored as part of the innovative San Gabriel River Adaptive Management approach.

Habitat areas are closely monitored as part of the innovative San Gabriel River Adaptive Management approach.

E3S Photos E3S Photos

Since 1962 the Sanitation Districts has helped improve water resource sustainability in arid Southern California through groundwater recharge operations in the San Gabriel River Watershed.

The San Gabriel River Watershed Project carefully assessed existing conditions and developed an innovative Adaptive Management approach that provides protection of natural resources while at the same time enabling the implementation of additional water supply for the region.

E3S Photos

The San Gabriel River Watershed Project finds the right balance by recycling more water and discharging to the San Gabriel River at strategic locations, times and amounts to support habitat. Under the Adaptive Management approach, the timing and volumes of river discharge will be set to sustain important habitat.
