Project Description

Demonstration of a comprehensive, integrated approach that considers all environmental media, i.e., air, water, and land. For example, solution of an air pollution problem must not create a land disposal problem or an adverse water impact that is not addressed by the project.

For nearly 40 years, the City of South Sioux City, Nebraska (City), conveyed wastewater across the river to Sioux City, Iowa. On November 25, 2019, South Sioux City received notice that the wastewater treatment contract would be terminated or altered in four years.

The concern was the volume and composition of the wastewater. In addition to residential waste, South Sioux City has a blossoming industrial sector. At the same time, Sioux City’s 60-year-old plant needed significant renovations, which would raise rates by more than 30% in two years. This left South Sioux City with two options— build its own wastewater treatment facility or risk being cut off.

The new $35 million, 2-million-gallon-per-day (MGD) South Sioux City Wastewater Treatment Facility features Nebraska’s first aerobic granular sludge (AGS) system, two 11.5-million-gallon covered anaerobic lagoons, aerobic digesters, solids processing facilities, ultraviolet (UV) disinfection, lift station improvements, and an outfall to the Missouri River.

Quality as evidenced by the degree of user satisfaction and proven performance.

The project was completed ahead of schedule and under budget. The new $39 million South Sioux City WWTF offers the City a once-in-a-generation opportunity to control their own destiny and continue its economic viability. The 2 MGD facility brings first-of-its-kind AGS to Nebraska and provides additional treatment solutions to the industry. It’s designed to treat current industrial loads while its flexible and scalable design offers options for future nutrient removal, industrial growth and additional wastewater integration.

Originality and innovation, representing the application of new knowledge, a new application of existing knowledge, or an innovative mix of existing knowledge.

NEBRASKA’S FIRST AEROBIC GRANULAR SLUDGE TREATMENT SYSTEM

With endless options for the city’s first treatment plant, the team chose Nebraska’s first aerobic granular sludge (AGS) system based on its small footprint, modularity, expandability, efficiency, low life cycle costs, and ability to handle high-organic-strength wastewater.

The AGS system design is based on Aqua-Aerobic Systems’ commercially available AquaNereda® process. Its sequential batch reactor (SBR) does not require final clarifiers, reducing the necessary tank quantity while the granular technology also can hold about twice the biomass inventory than conventional activated sludge, allowing high loading rates and smaller tanks. This is feasible because the aerobic granules, larger and denser than conventional floc, shortens settling times and reduces required volumes.

Biologically, the aerobic granules form different zones within each granule, giving a more well-rounded and robust biological inventory and simultaneously removing nitrogen and phosphorus. This eliminates the need for mechanical mixing, recycle pumping and other aspects of conventional treatment, which are costly and energy intensive. After treatment, the facility uses ultraviolet (UV) disinfection before discharge. The result is a higher quality effluent.

COVERED ANAEROBIC LAGOONS

Prior to AGS, the wastewater is sent to covered anaerobic lagoons (CAL) for pretreatment, primary treatment and flow equalization. The CALs remove a large portion of the organic load; most fats, oils and grease; and solids larger than 6 millimeters. The lagoons treat high-strength industrial wastewater and provide opportunities for gas collection, odor control, emission reduction and energy recovery. Use of CALs ahead of AGS for treatment of industrial waste is a novel approach- in the United States.

The complexity of the problem addressed.

FLOW EQUALIZATION

Industrial wastewater varies widely day-to-day and week-to-week, making managing the biological processes tricky. The CALs act as equalization basins, allowing lagoon levels to rise and fall with industry operation schedules. However, the flow to the AGS is controlled via a programmable logic controller (PLC), which subsequently adjusts the anaerobic effluent valve.

NPDES PERMIT AND AMMONIA LIMITS

Alongside NDEE, the team obtained a new National Pollution Discharge Elimination System (NPDES) permit for the Missouri River outfall. Without previous AGS facility experience, NDEE required detailed responses to their concerns for permitting and construction.

With the outfall’s close location to another treatment plant discharge location and its subsequent river impacts, the team modeled river assimilation for ammonia. The result – combining both discharges for modeling flow throughout the river averted overly stringent NPDES limits.

CONSTRUCTION COSTS AND FUNDING

Winter storms and COVID-19’s supply chain hurdles resulted in construction bids exceeding the engineers estimate by $6 million. The team quickly identified $1 million in value engineering while the City sought $17.2 million in grant funding from the U.S. Departments of Commerce and Housing and Urban Development. A Nebraska Department of Environment and Energy’s (NDEE) State Revolving Fund (SRF) loan finalized financing.

STARTUP COORDINATION

As a greenfield plant, the facility required significant startup coordination. Establishing the biological conditions to achieve proper treatment, the team sourced “seed sludge” from Sioux City and Tyson Meats. In addition, the lagoons needed caustic addition to maintain alkalinity to grow the anaerobic bacteria.

To divert flow to the new facility, the team and city established a date of transition, worked alongside industry and communicated with Sioux City to maintain a backup option. In the end, coordination paid off and the plant was started up on the scheduled date.

The extent to which the project contributes to or offers the prospect of contributing to social or economic advancement.

EXPANDABLE FOR NEW BUSINESS AND RESIDENTIAL

The modular, expandable AGS technology simplifies its expansion — a $22 million residential expansion is expected to be completed in 2026. To account for future flows, the team made provisions to add tankage, tertiary filtration, hydraulic changes, and a third option at the splitter structure for a third lagoon. It paves the way for future expansions or retrofits across the state — AGS was chosen for two expansions in Omaha, currently under design and expected to be operational in 5-6 years.

BIOGAS COLLECTION, USE, HANDLING AND POTENTIAL SALE

Currently, generated biogas fuels the lagoons boilers, eliminating the need for costly natural gas supply. In the future, the facility can condition the biogas, convert it into renewable natural gas and transform the byproduct into a revenue source for the City. Designed as part of the plant’s next expansion for domestic flows, the biogas conditioning is expected to produce 570 standard cubic feet per minute of biogas, resulting in $5 million in additional revenue per year.

SOLIDS HANDLING AND BENEFICIAL APPLICATION

Biosolids are removed as waste activated sludge. After thickening and additional treatment, the biosolids are dewatered. The facility is expected to produce for Class B biosolids per U.S. Environmental Protection Agency regulations. Dewatered solids will be temporarily stored on a cake storage pad and eventually will be land applied to farmland. These biosolids will provide the necessary nutrients and act as a natural fertilizer for the farmland.


Click images to enlarge in separate window.

E3S Photos E3S Photos

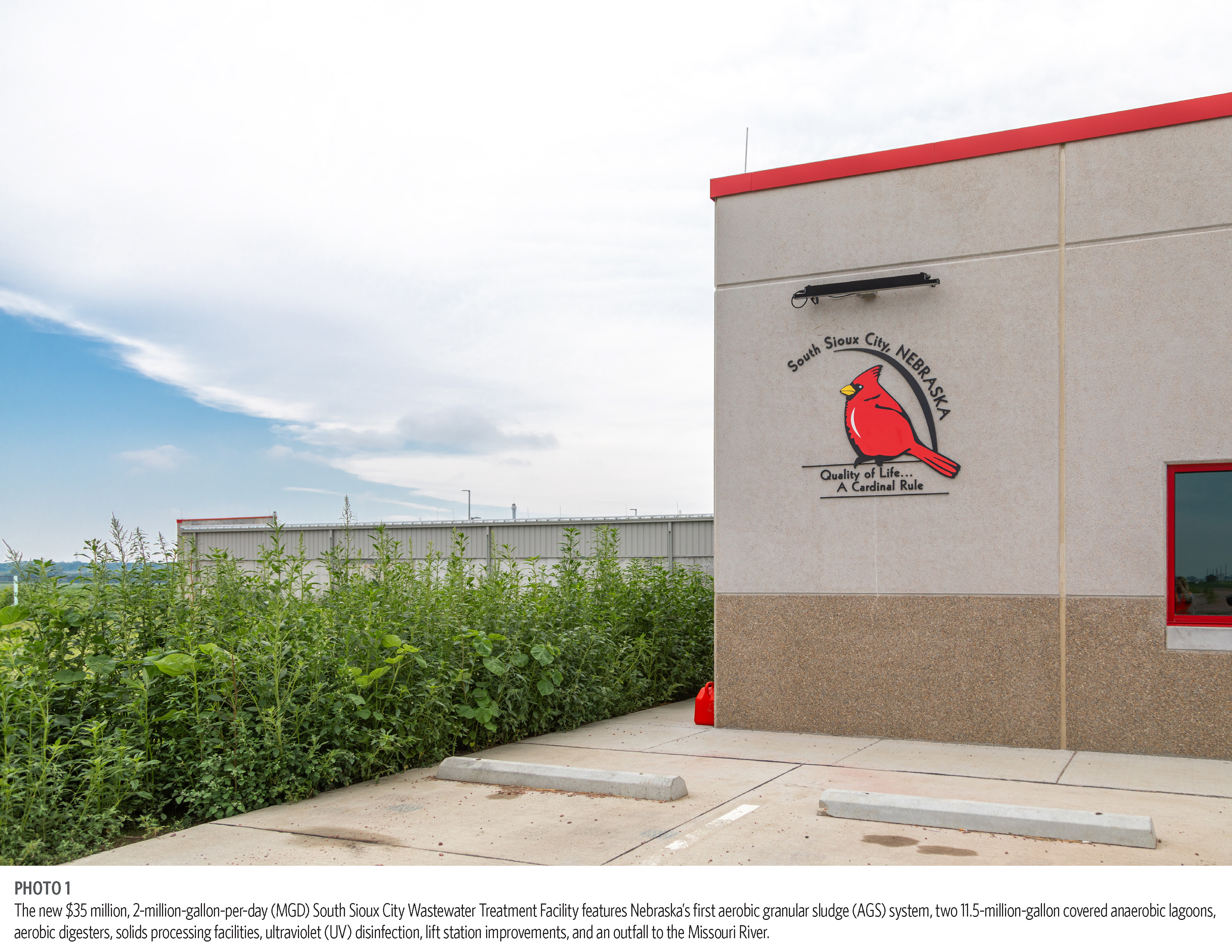

The new $35 million, 2-million-gallon-per-day (MGD) South Sioux City Wastewater Treatment Facility features Nebraska’s first aerobic granular sludge (AGS) system, two 11.5-million-gallon covered anaerobic lagoons, aerobic digesters, solids processing facilities, ultraviolet (UV) disinfection, lift station improvements, and an outfall to the Missouri River.

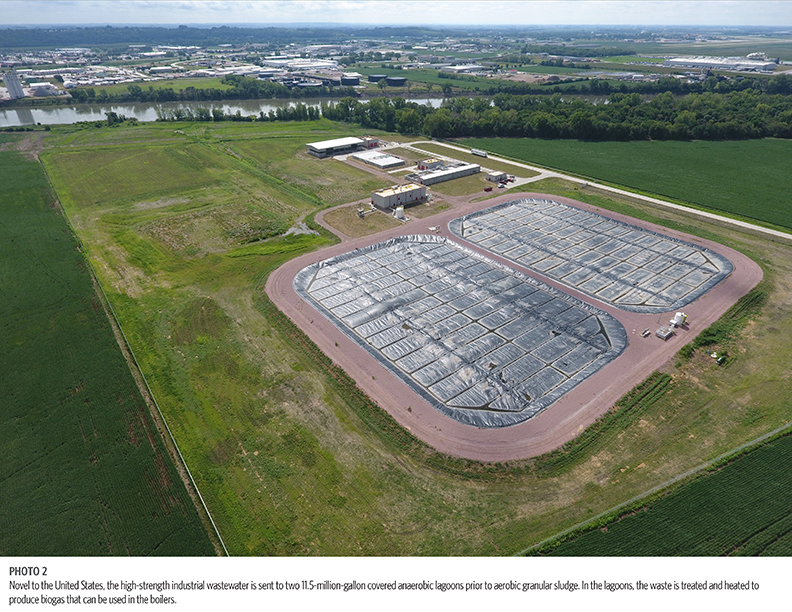

Novel to the United States, the high-strength industrial wastewater is sent to two 11.5-million-gallon covered anaerobic lagoons prior to aerobic granular sludge. In the lagoons, the waste is treated and heated to produce biogas that can be used in the boilers.

E3S Photos E3S Photos

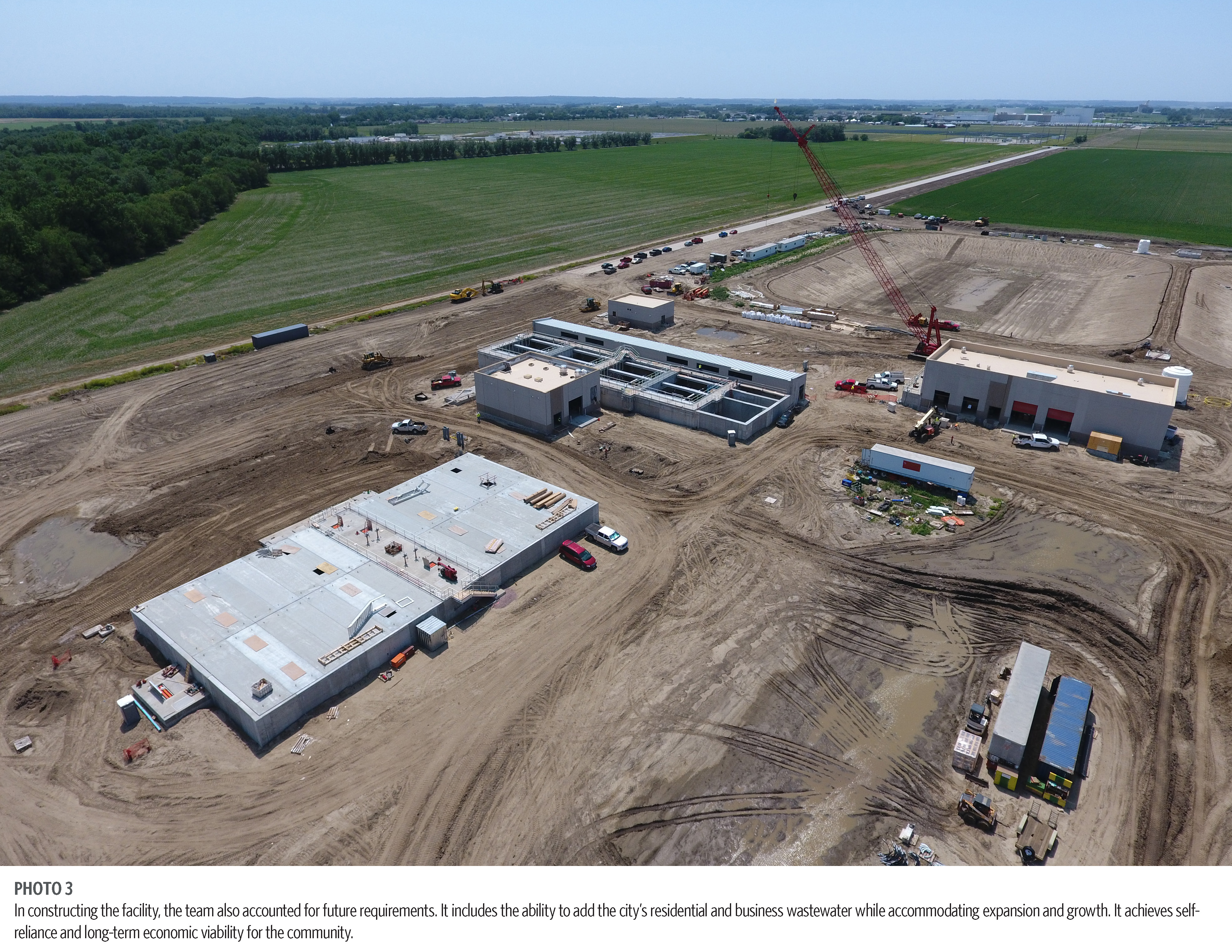

In constructing the facility, the team also accounted for future requirements. It includes the ability to add the city’s residential and business wastewater while accommodating expansion and growth. It achieves self-reliance and long-term economic viability for the community.

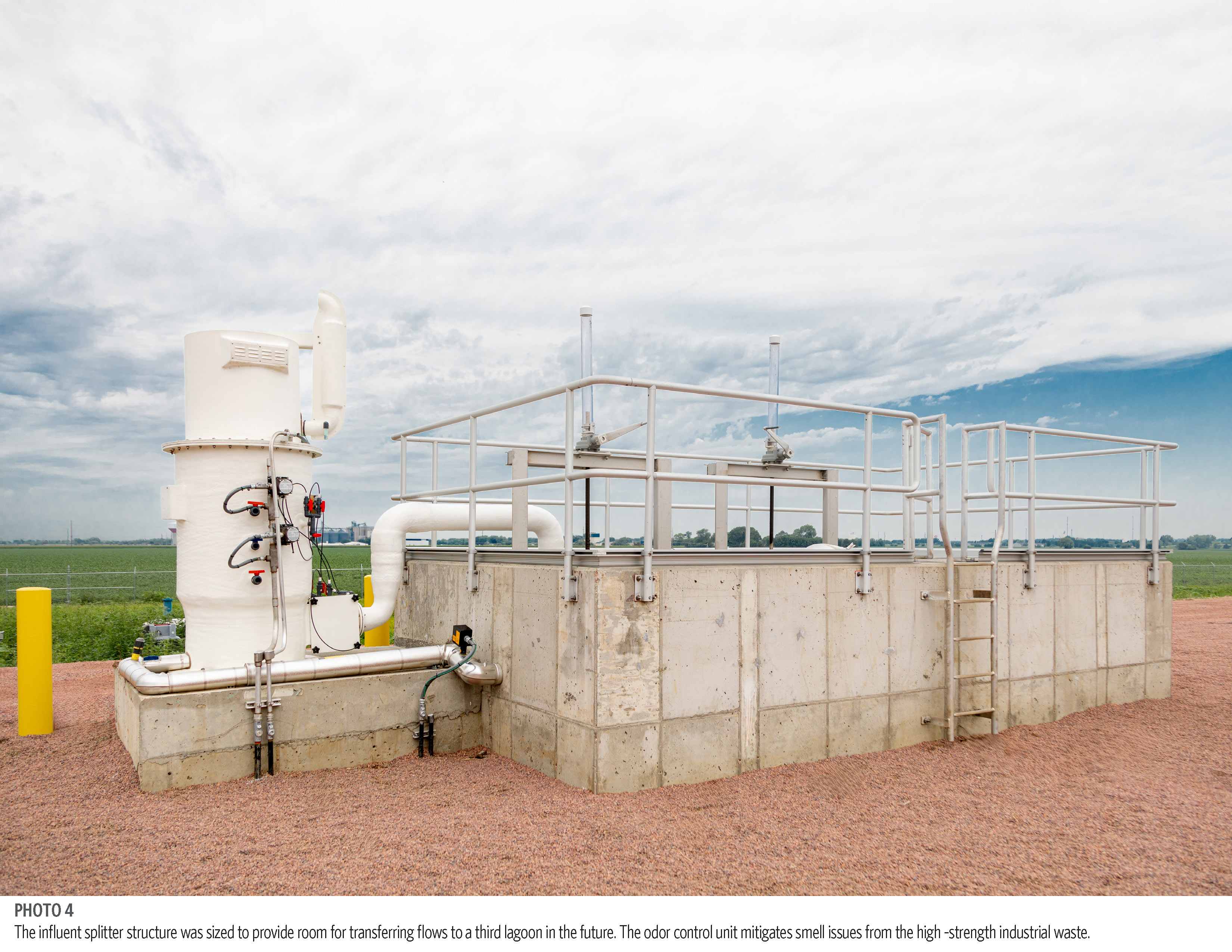

The influent splitter structure was sized to provide room for transferring flows to a third lagoon in the future. The odor control unit mitigates smell issues from the high -strength industrial waste.

E3S Photos E3S Photos

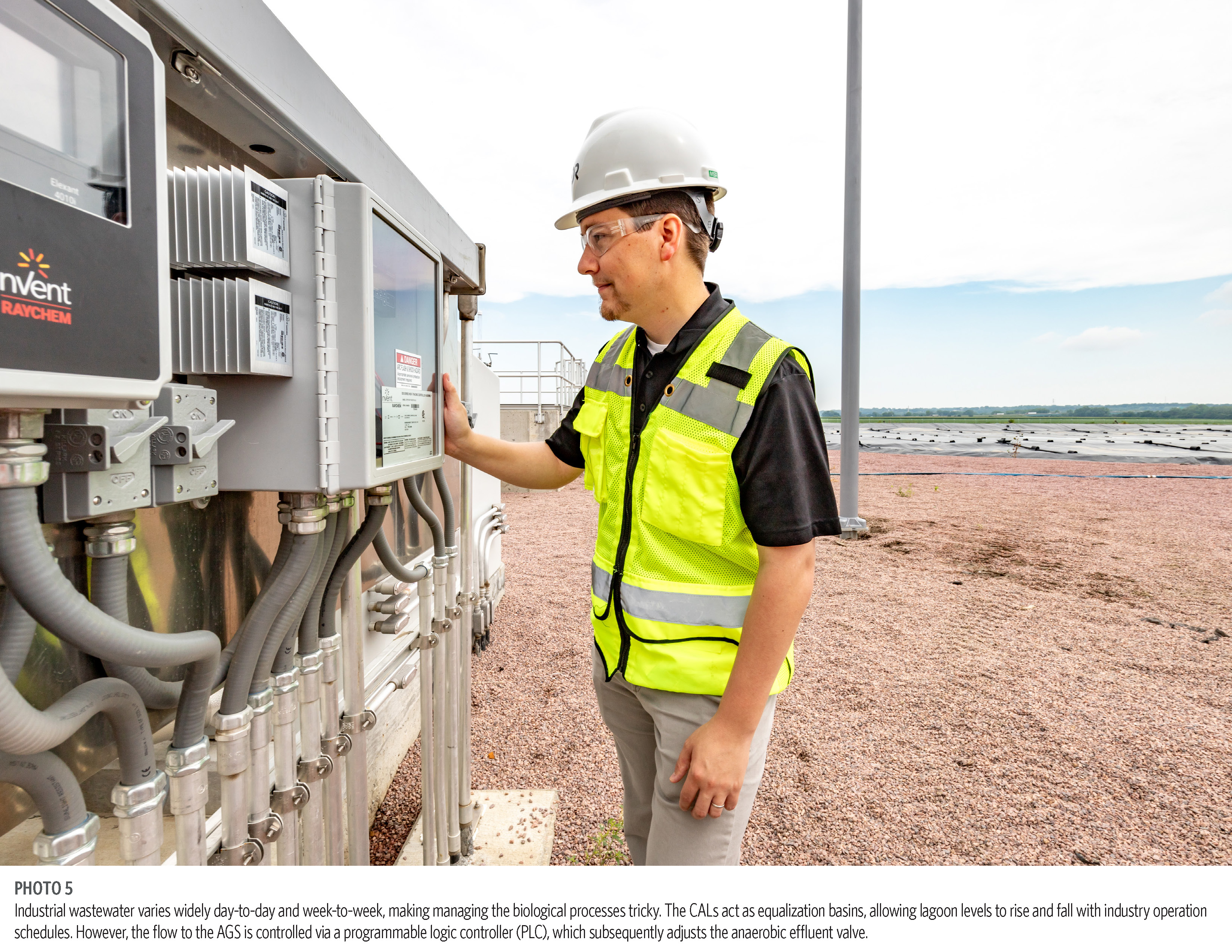

Industrial wastewater varies widely day-to-day and week-to-week, making managing the biological processes tricky. The CALs act as equalization basins, allowing lagoon levels to rise and fall with industry operation schedules. However, the flow to the AGS is controlled via a programmable logic controller (PLC), which subsequently adjusts the anaerobic effluent valve.

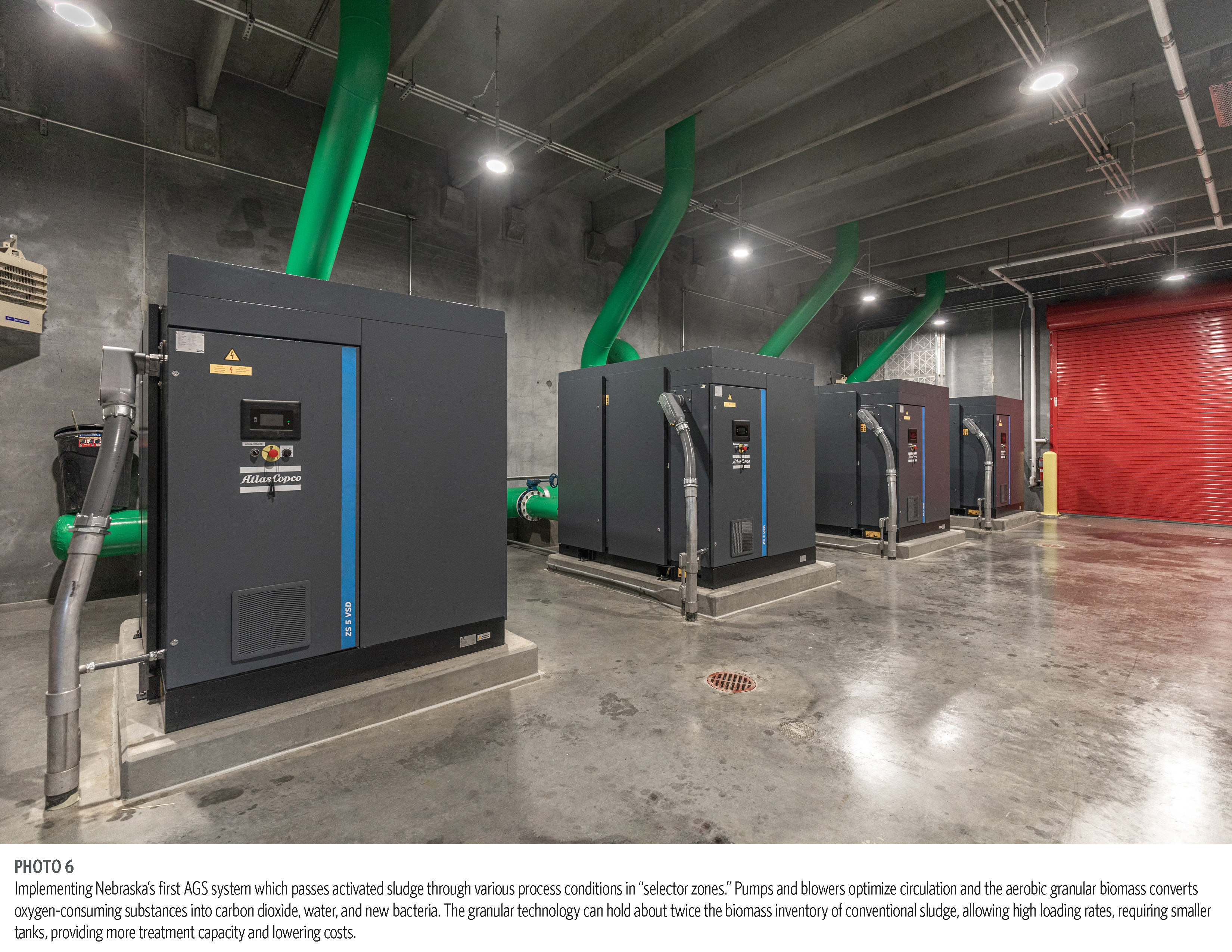

Implementing Nebraska’s first AGS system which passes activated sludge through various process conditions in “selector zones.” Pumps and blowers optimize circulation and the aerobic granular biomass converts oxygen-consuming substances into carbon dioxide, water, and new bacteria. The granular technology can hold about twice the biomass inventory of conventional sludge, allowing high loading rates, requiring smaller tanks, providing more treatment capacity and lowering costs.


E3S Photos E3S Photos

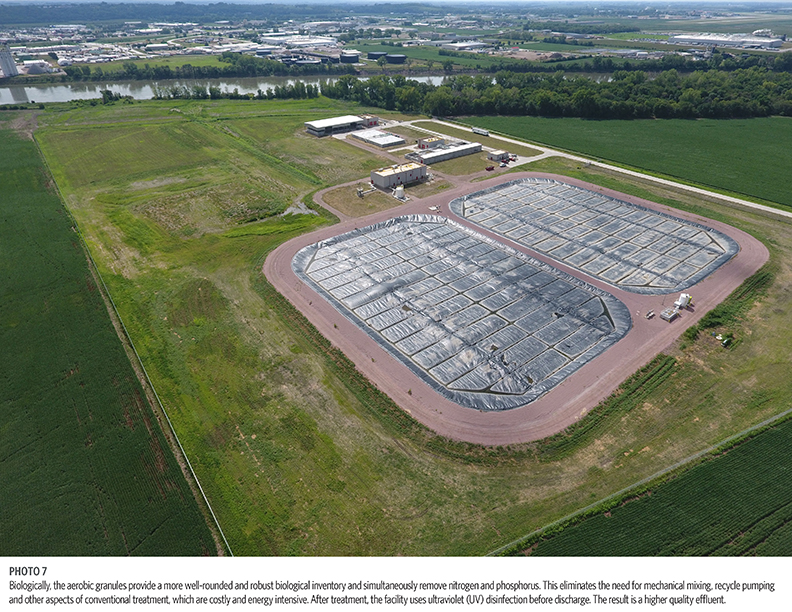

Biologically, the aerobic granules provide a more well-rounded and robust biological inventory and simultaneously remove nitrogen and phosphorus. This eliminates the need for mechanical mixing, recycle pumping and other aspects of conventional treatment, which are costly and energy intensive. After treatment, the facility uses ultraviolet (UV) disinfection before discharge. The result is a higher quality effluent.

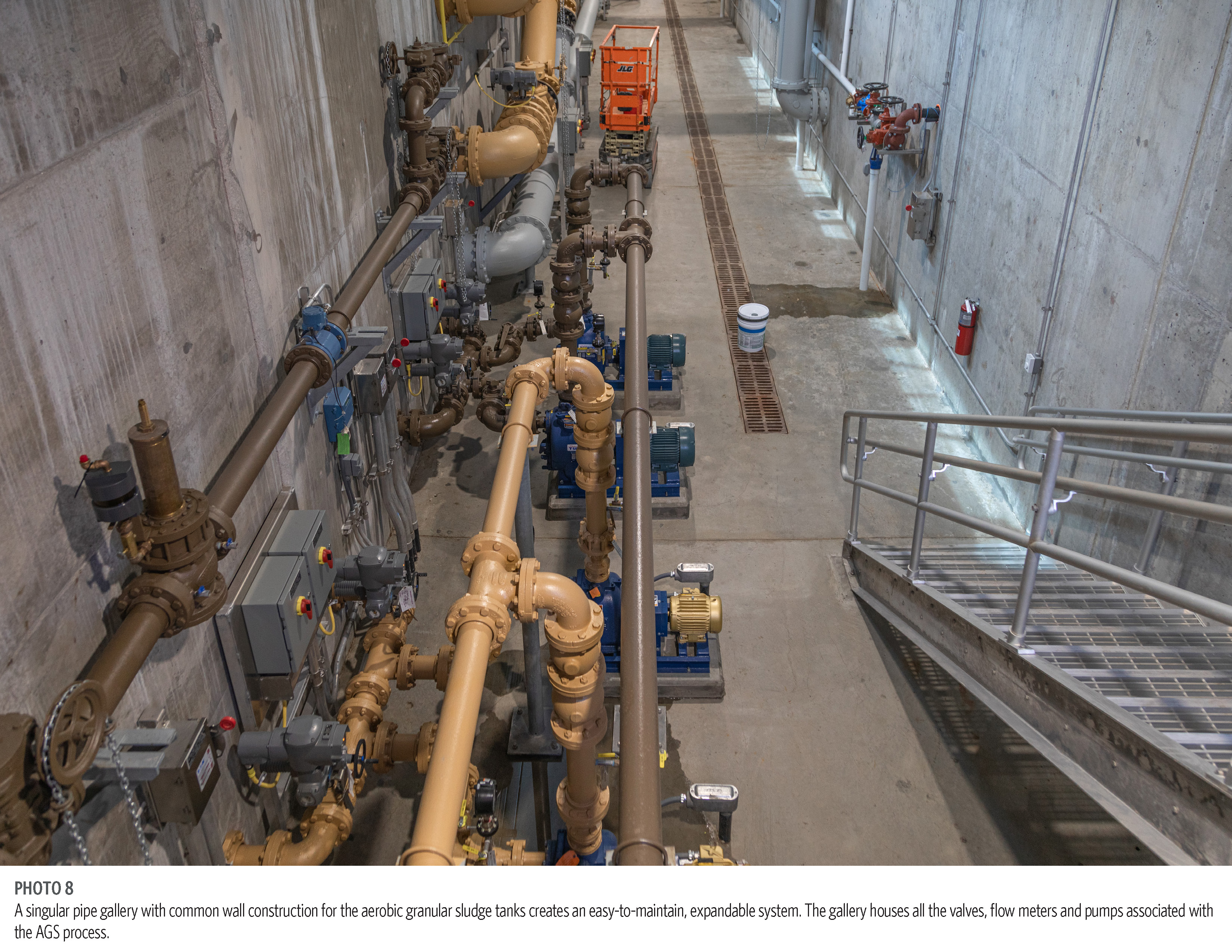

FA singular pipe gallery with common wall construction for the aerobic granular sludge tanks creates an easy-to-maintain, expandable system. The gallery houses all the valves, flow meters and pumps associated with the AGS process.

E3S Photos E3S Photos

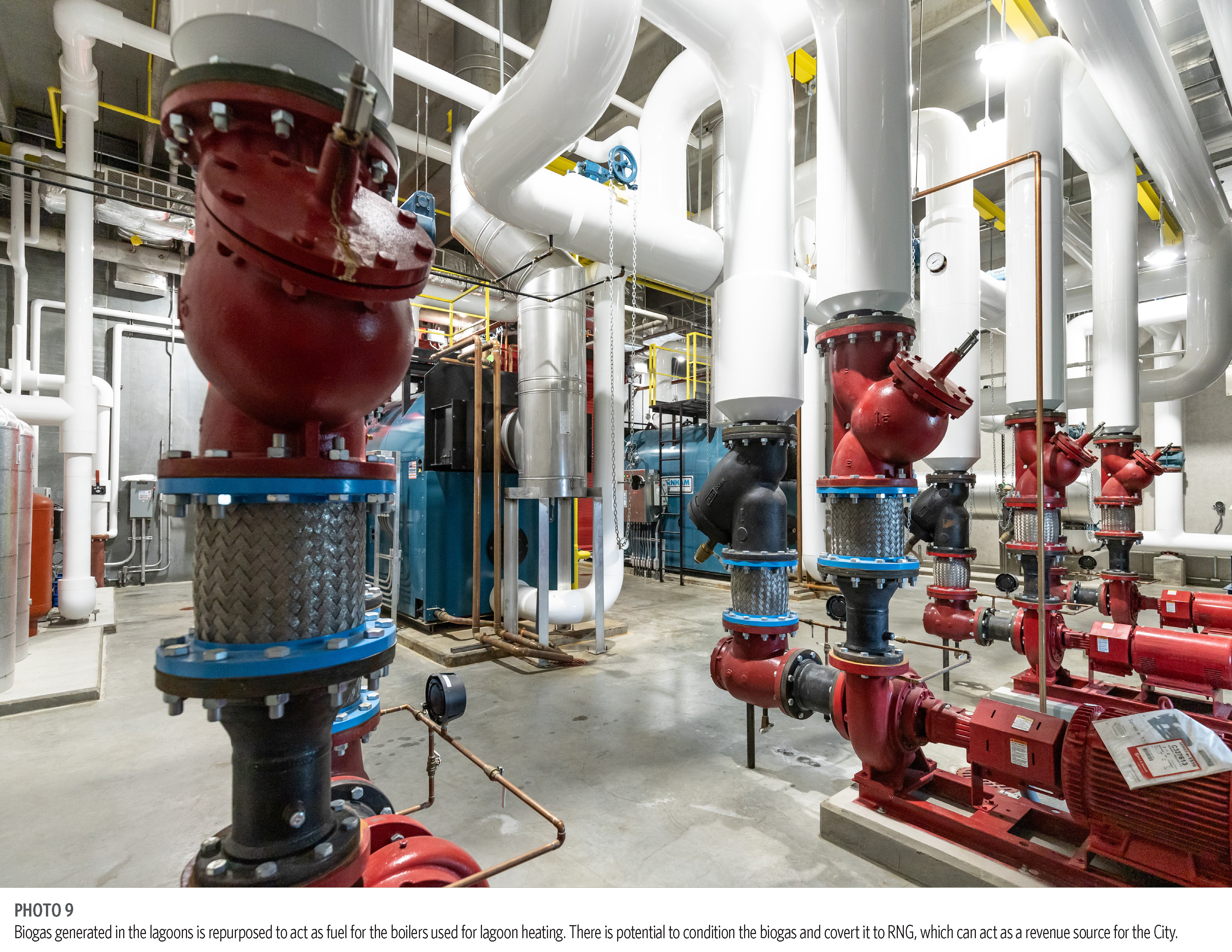

Biogas generated in the lagoons is repurposed to act as fuel for the boilers used for lagoon heating. There is potential to condition the biogas and covert it to RNG, which can act as a revenue source for the City.

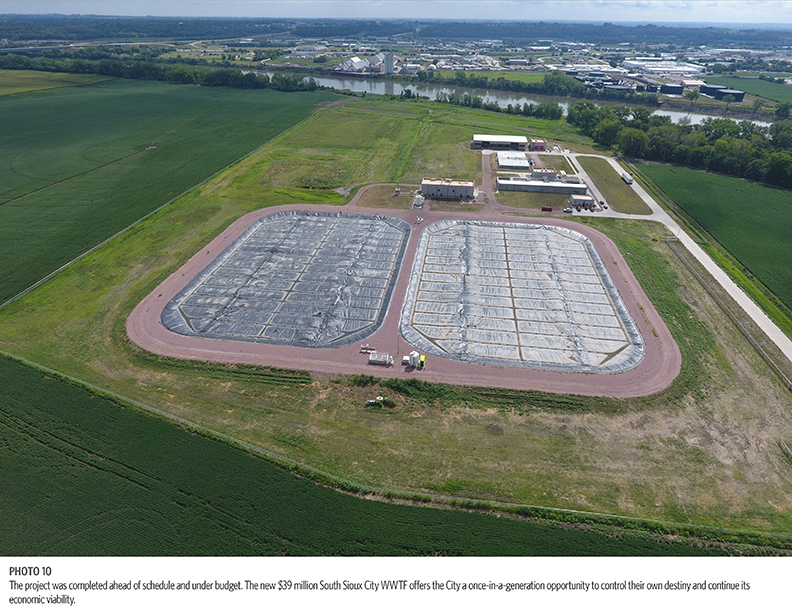

The project was completed ahead of schedule and under budget. The new $39 million South Sioux City WWTF offers the City a once-in-a-generation opportunity to control their own destiny and continue its economic viability.
